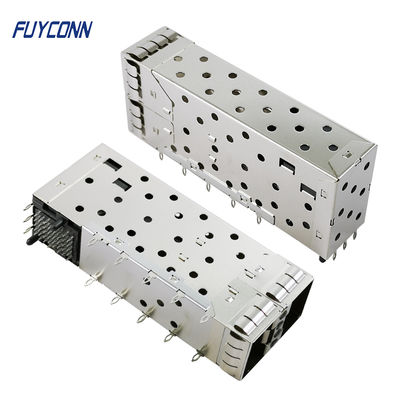

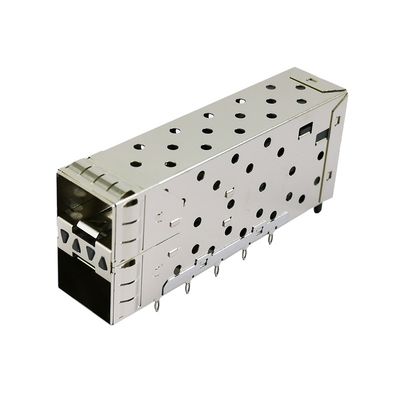

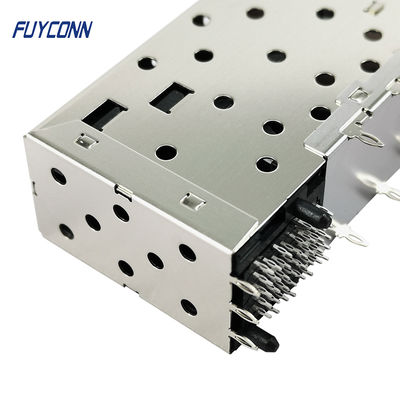

2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light

2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light
2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light 2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light 2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light 2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light 2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light 2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light

Großes Bild :  2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light

Produktdetails:
Herkunftsort: Guangdong, China
Markenname: FUYCONN
Modellnummer: Fuysfp017-28
Zahlung und Versand AGB:
Min Bestellmenge: 100
Preis: $5
Kontakt

2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light

Beschreibung
Anzahl der Ports: 2*1 Dual -Ports Anzahl der Terminals: 40 Pin
Anschlussgeschlecht: Weiblich Farbe: Nick Silver
Isolatormaterial: PBT Kontaktnabel Material: Phosphorbronze
Fußart: Lötlose Stecknadel Lichtpipe: Ja
Aktuelle Bewertung: 1AMP Stoßspannung: 500 V für eine Minute
Isolator-Widerstand: 500 mΩ min (bei DC500V) Kontaktwiderstand: 35mΩ max
Betriebstemperatur: -55°C zu +105°C Datengeschwindigkeitsrate: Bis zu 10 GB/s
Montagetyp: PCB
Hervorheben:

2 port SFP+ connector PCB mount

,

40 pin female SFP+ connector

,

SFP+ connector with light indicator

2x1 2 Port SFP+ Cage Connector, Press-Fit Termination Small Form-factor Pluggable Plus 40 Position SFP+ Connector w/ Light
Product Overview

The SFP+ (Small Form-factor Pluggable Plus) connector is a high-performance optical transceiver designed for data communication applications. This 2x1 2-port configuration features press-fit termination and includes a lightpipe for status indication.

Technical Specifications
Feature Specification
Product Name SFP Connector
Product Line Small Form-factor Pluggable
Connector Gender Female Centronic Connector
Contact Type Small Form-factor Pluggable
Number of Positions 40pin
Ports 2x1 2 Ports
Contact Material Phosphor Bronze
Finish Nickel Silver
Insulation Material PBT
Lightpipe Yes
Electrical Specifications
Parameter Value
Current Rating 1AMP
Withstanding Voltage 500V for one minute
Insulator Resistance 500MΩ min (at DC500V)
Contact Resistance 35MΩ Max
Operation Temperature -55°C to +105°C
2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light 0
Applications
  • Networking equipment
  • Router/Switch
  • Data/Communications
  • High-end servers
  • Telecommunications
  • Switches
  • Telecommunications hardware
  • Fibre Channel and Gigabit Ethernet
  • Servers
Packaging & Shipping

Our products are securely packaged using:

  • Vacuum Tray
  • PE Bag
  • Strong bags/boxes/cartons
  • PE Bag + Strips
About Dongguan Fuyconn Electronics Co., Ltd

Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.

Quality Assurance
  • UL- and SGS-certified
  • RoHS compliant
  • Product defect rate less than 0.5%
  • 99% customer repeat rate
Why Choose Us
  • 16 years Centronic Connector production experience
  • Experienced R&D team
  • Thousands of molds available
  • Factory-direct pricing
  • Fast sample delivery (within 2 days)
  • Short lead times (within 1 week)
  • No minimum order quantity
  • Custom branding available
  • Full production control
  • Multiple payment methods
Contact Information

Grace Zhong

Wechat: +86 18925547246

Skype: fuyconn001

Phone: +86 18925547246

Office Phone: +86 0769 83690889

Address: 1-2/F, No.108 Hengdong Road, Fengda Industry District, Dongkeng town, DongGuan City, Guangdong Province, China

Größe und Tag:

SFP female connector 40 pin,

press-fit SFP connector PCB mount,

2x1 SFP connector press-fit
